By Guido Socher

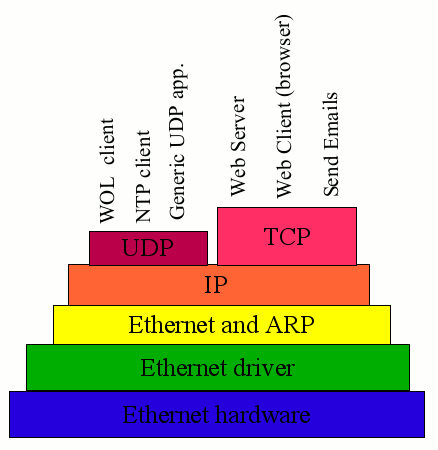

Introduction to the tuxgraphics TCP/IP stack, 3rd generation

[Illustration]

Abstract:

The tuxgraphics stack is the smallest and fastest TCP/IP stack. It runs on microcontrollers as small as atmega88. It was designed with web server functionality in mind and it has proven itself over many years.

We have now re-designed the API and in the following article you will see how easy and straight forward the new web server API is. We have also added web client functionality. That is: a "web browser" inside the microcontroller. Why should you need a web browsers? The answer is simple. It can be used in a network of distributed sensors to report measurement data to a central web server.

Something that is brand new in this stack is the possibility to send email notifications such as "the temperature in the server room has reached 35'C".

The web client is also useful for micro-blogging. You can send updates to your twitter/identi.ca account.

Exciting new possibilities.

_________________ _________________ _________________



Making efficient use of the hardware

Microcontrollers are, as the name already suggests, small. If you implement a TCP/IP stack then you are limited by the available processing power and especially the available RAM that such chip have. The stack has to be as small as possible and you have to decided how you spend the available memory. Most stack implementations introduced therefore a very low limit on the number of parallel sessions. Typical values are 2-3 parallel web browser connections. The tuxgraphics stack takes a different approach. There is no hard-coded limit. Instead we limit the amount of data that a web page can hold to one IP packet.

Small is cute, slim is fast

To limit the size of a web page to just one IP packet makes sense because IP packets on ethernet can be as big as 1500 bytes. That is a lot for microcontroller which has only 1024 bytes of RAM.

The benefit of this limitation is the outstanding speed and performance you get. You notice when you have a tuxgraphics embedded web server in front of you. It's a click and the response is there, instantly.

This tiny web sever which needs only about 0.5W of power can outperform an big apache web server on a PC hardware. It can serve dozens of web browsers in parallel.

Not an ordinary web server

Most people think of web servers as file servers. Boxes that provide images and documents to the user. The tuxgraphics web server is not like this. It's a user interface to your microcontroller hardware. You can control motors and relays or read out sensors. In this context you don't need big web pages. A temperature sensor might provide something like "20'C". That is only 4 bytes of actual information!

Using the tuxgraphics AVR web server interface

The new stack comes with a file called basic_web_server_example.c which is a very simple web server example. Using this example I will explain how the web server API works.

The stack consists of the files enc28j60.c and ip_arp_udp_tcp.c There are also the header files enc28j60.h, ip_arp_udp_tcp.h, net.h, ip_config.h timeout.h. To compile the code will need the Makefile.

The file ip_config.h is used to configure the stack. If you want only a web server and no client (=no web browser functionality) then you should undefine all client functions in the file ip_config.h to save space. Open the file in a text editor and read the comments. I think you will understand what to do. The eth_tcp_client_server-3.x.tar.gz file from the download section of this article has client functionality enabled because that tar.gz file contains also other examples. The compiled basic_web_server_example.hex code is therefore a bit bigger than it need to be because it contains unused code.

Let's look at the code of basic_web_server_example.c.
   1	#include <avr/io.h>
   2	#include <stdlib.h>
   3	#include <string.h>
   4	#include "ip_arp_udp_tcp.h"
   5	#include "enc28j60.h"
   6	#include "timeout.h"
   7	#include "avr_compat.h"
   8	#include "net.h"
   9
  10	// This software is a web server only.
  11	//
  12	static uint8_t mymac[6] = {0x54,0x55,0x58,0x10,0x00,0x29};
  13	// the web server's own IP address:
  14	static uint8_t myip[4] = {10,0,0,29};
  15
  16	// server listen port for www
  17	#define MYWWWPORT 80
  18
  19	#define BUFFER_SIZE 550
  20	static uint8_t buf[BUFFER_SIZE+1];
  21
  22	uint16_t http200ok(void)
  23	{
  24	        return(fill_tcp_data_p(buf,0,PSTR("HTTP/1.0 200 OK\r\n
Content-Type: text/html\r\nPragma: no-cache\r\n\r\n")));
  25	}
  26
  27	// prepare the webpage by writing the data to the tcp send buffer
  28	uint16_t print_webpage(uint8_t *buf)
  29	{
  30	        uint16_t plen;
  31	        plen=http200ok();
  32	        plen=fill_tcp_data_p(buf,plen,PSTR("<pre>"));
  33	        plen=fill_tcp_data_p(buf,plen,PSTR("Hi!\nYour web server works great."));
  34	        plen=fill_tcp_data_p(buf,plen,PSTR("</pre>\n"));
  35	        return(plen);
  36	}
  37
  38	int main(void){
  39	        uint16_t dat_p;
  40
  41	        // set the clock speed
  42	        CLKPR=(1<<CLKPCE);
  43	        CLKPR=0; // 8 MHZ
  44	        _delay_loop_1(0); // 120us
  45
  46	        //initialize the hardware driver for the enc28j60
  47	        enc28j60Init(mymac);
  48	        enc28j60clkout(2); // change clkout from 6.25MHz to 12.5MHz
  49	        _delay_loop_1(0); // 60us
  50	        enc28j60PhyWrite(PHLCON,0x476);
  51	        _delay_loop_1(0); // 60us
  52
  53	        //init the ethernet/ip layer:
  54	        init_ip_arp_udp_tcp(mymac,myip,MYWWWPORT);
  55
  56	        while(1){
  57	                // read packet, handle ping and wait for a tcp packet:
  58	                dat_p=packetloop_icmp_tcp(buf,
                             enc28j60PacketReceive(BUFFER_SIZE, buf));
  59
  60	                /* dat_p will be unequal to zero if there is a valid http get */
  61	                if(dat_p==0){
  62	                        // no http request
  63	                        continue;
  64	                }
  65	                // tcp port 80 begin
  66	                if (strncmp("GET ",(char *)&(buf[dat_p]),4)!=0){
  67	                        // head, post and other methods:
  68	                        dat_p=http200ok();
  69                          dat_p=fill_tcp_data_p(buf,dat_p,
                                       PSTR("<h1>200 OK</h1>"));
  70	                        goto SENDTCP;
  71	                }
  72	                // just one web page in the "root directory" of the web server
  73	                if (strncmp("/ ",(char *)&(buf[dat_p+4]),2)==0){
  74	                        dat_p=print_webpage(buf);
  75	                        goto SENDTCP;
  76	                }else{
  77	                        dat_p=fill_tcp_data_p(buf,0,PSTR("HTTP/1.0 401 Unauthorized
\r\nContent-Type: text/html\r\n\r\n<h1>401 Unauthorized</h1>"));
  78	                        goto SENDTCP;
  79	                }
  80	SENDTCP:
  81	                www_server_reply(buf,dat_p); // send web page data
  82	                // tcp port 80 end
  83	        }
  84	        return (0);
  85	}

The interesting part starts on line 12 and 14. It defines the IP address and the MAC address of this device. The MAC address has be unique in your own LAN your neighbor could re-use the same numbers.

Let's jump to lines 41-51. Here the hardware and ethernet layer is initialized. You don't have to change anything. Line 54 initializes the actual web server TCP/IP stack and you can leave it also as it is.

Microcontrollers do normally not have an operating system. Line 56 is therefore "our operating system". It is an endless loop that executes one by one the tasks that need to be performed. The most important task here is to wait for incoming packets. This is line 58. enc28j60PacketReceive get's the packet from the driver and packetloop_icmp_tcp is the actual stack which returns the position (dat_p) of the http data in variable buf if there is a request for a web page.

Line 66 handles all request but an actual http-get.

If there is an actual http get then we go to line 73 and check if the web browser was asking just for the root web page. If you web server is at 10.0.0.29 then this root page would correspond to the URL http://10.0.0.29 . Web browsers ask theses days for all kind of things such as favicon.ico files or crawlers ask for robots.txt. It is therefore important that we return a http error code 401 for such things (line 77).

On line 74 we call the previously defined function "dat_p=print_webpage(buf);" which prints the actual web page into the variable buf. The variable buf has to be big enough to hold the IP packet with the web page. You will notice when it is to small as the web server stops then to work. The function fill_tcp_data_p is used to fill the web page with data. fill_tcp_data_p takes a hard coded string, "PSTR", which the compiler puts into flash memory only. This saves RAM. If you want to print dynamic data (e.g sensor data) onto the web page then you use fill_tcp_data (without the _p). fill_tcp_data takes a normal C-string as argument.

The actual web page which we produce in the function print_webpage looks like this:
  <pre>
  Hi!
  Your web server works great.
  </pre>

In your web browser it looks then like this:
  Hi!
  Your web server works great.

When we return from print_webpage then we go to line 81 where the web page is sent back to the requesting web browser.

That's all.

Smart web page design

There is nothing really special about web pages for embedded web servers. What you need to do is write an efficient web page. It does not make sense to display a temperature reading like "20'C", which is a 4 byte string, on a huge web page. So DON'T do this:
  <!DOCTYPE html PUBLIC "-//W3C//DTD HTML 3.2//EN">
  <html>
  <head>
    <title>Awful web page</title>
  </head>
  <body>
    <pre>
  Temperature: 20'C
  </pre>
  </body>
  </html>

This page consumes 160 bytes and there are 4 bytes of information. So how do we get rid of all the "information garbage"? Fortunately there are default values for many html-tags if they are omitted. The best web pages are anyhow those that would display on any browser and do not require a special document type or structure. We can therefore reduce the web page a lot and the end result is the same:
  <pre>
  Temperature: 20'C
  </pre>

This page is only 30 bytes long and it is exactly the same as the 160 bytes page. The <pre> tag means that the text is pre-formated. A single new line character (\n) we already cause a line break. This is more efficient than a <br>-tag. If you add a second sensor and a re-fresh button then the page would just look like this:
  <pre>
  Indoor : 20'C
  Outdoor: 16'C
<a href=.>[refresh]</a>
  </pre>

A nice clean page that renders fast in any web browser and is instantly transmitted over the network.

The ethernet remote switch application (control a relay remotely)

The file main.c (see download eth_tcp_client_server-3.x.tar.gz) implements a more complicated web server. A web server which can be used to switch a relay remotely on or off. It is essentially the same as 2006-11: HTTP/TCP with an atmega88 microcontroller (AVR web server) just re-written for the new stack. So if you are looking for an example that is more complicated than basic_web_server_example.c then open main.c. The web page to switch on/off a relay remotely looks like this:

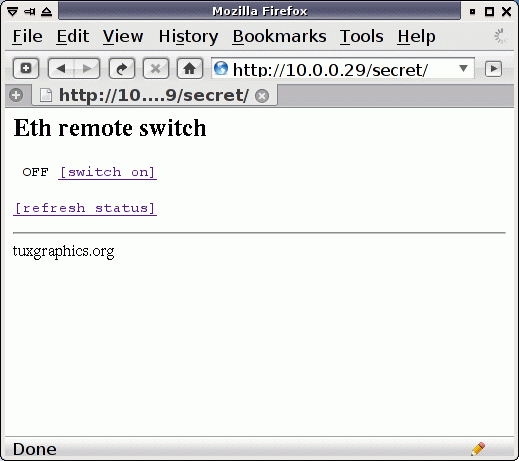

switching a relay from remote

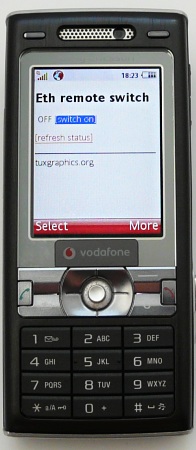

... on a mobile phone:
remote control from you mobile phone


The idea of a web client

We have seen that a web server makes really sense for displaying data from a microcontroller. A web page is a great user interface and can be a machine interface at the same time.

Why would we need a web browser inside a microcontroller? The problem is especially that most many web pages are huge, hundreds of kilobytes. What do we do with all those bytes in chip that has only 1Kb to store the data?

Web browsers can also be used to up-load data. You notice this when you go shopping on the internet and enter you address or you use google to search.

The plan is to use the ethernet board to upload measurement data and other information to a web server. The response from the web server to where we up-load would then mainly be ignored. We could read a status code indicating success or failure and we could read a date or other small pieces of information but the bulk of the resulting web page would be discarded.

This idea especially convenient when you have multiple distributed sensors. Just plug them into any DSL router and they could report measurement data once a day. Microcontrollers have already timers/clocks inside. To program them to upload data once every hour or once every day is very easy.

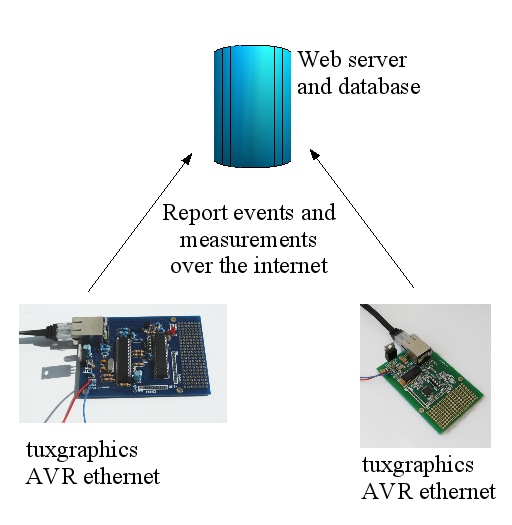

distributed sensors as web clients


How web browsers work

We should study how web browsers work before we go into the implementation details of a micrcocontroller embedded web browser. It is very easy to understand and test by using telnet. Try this. Open a telnet session to www.ietf.org (where all the internet standards are) on port 80. and then type:
GET / HTTP/1.0
Host: www.itef.org
User-Agent: tgr/1.0
Accept: text/html

After this hit twice return. What happens is this:
telnet www.itef.org 80
Trying 63.119.44.197...
Connected to www.itef.org.
Escape character is '^]'.
GET / HTTP/1.0
Host: www.itef.org
User-Agent: testing/1.0
Accept: text/html

HTTP/1.1 200 OK
Date: Wed, 29 Apr 2009 11:53:54 GMT
Server: Apache/2.2.3 (CentOS)
Set-Cookie: COOKIE=10.5.16.253.1241006034372969; path=/
ETag: "AAAASDUwzCY"
Last-Modified: Thu, 23 Apr 2009 20:55:43 GMT
Vary: Accept-Encoding,User-Agent

.... the web page continues here ....

By using telnet on port 80 we connect to the web server. We tell it that we want the root page "GET /". A web server might host many sites. Therefore we need to specify to which site hosted on that server we would like to get. This is the "Host: www.itef.org" line. In "User-Agent:" we specify what kind of web browser we are and after that which data formats we can accept. The web server responds then to our request after the empty line.

Uploading HTML Form-data

In the above example we have seen how to download a web page. How do we upload data? The easiest way to do that is to encode the data into the URL. This called GET-method. The data is grouped into key words and values and comes after a ?-sign. Data fields are separated by an ampersand. Like this: "formPage?sensor1=20&sensor2=15". Instead of the "/" after the GET in the above telnet example we would specify this string.

A playground to test your software

To use this web client you would need a web server. If you do not yet have such a server and you want to test your embedded web client then you can use http://tuxgraphics.org/cgi-bin/upld . You can test it by typing a url like this in your browser:
http://tuxgraphics.org/cgi-bin/upld?sensor1=20&sensor2=15

After that you can point your browser to http://tuxgraphics.org/cgi-bin/upld (without the question mark) and you can see what was uploaded.

Give me an example

The file test_web_client.c (see tar.gz archive in the download section) implements such a web client uploading data to http://tuxgraphics.org/cgi-bin/upld. Set the appropriate IP addresses in test_web_client.c, compile it and then download test_web_client.hex to the microcontroller on the ethernet board.

The software implements just an example and reports by whom it was ping-ed to http://tuxgraphics.org/cgi-bin/upld. So ping the ethernet board once and then check at http://tuxgraphics.org/cgi-bin/upld what was uploaded. You will see the ip address from where you ping-ed the board. It is not a very useful application but it is an example that does not need any special sensors or other hardware.

This is what the data looks like on the upld test site when the board was ping-ed from 10.0.0.7:

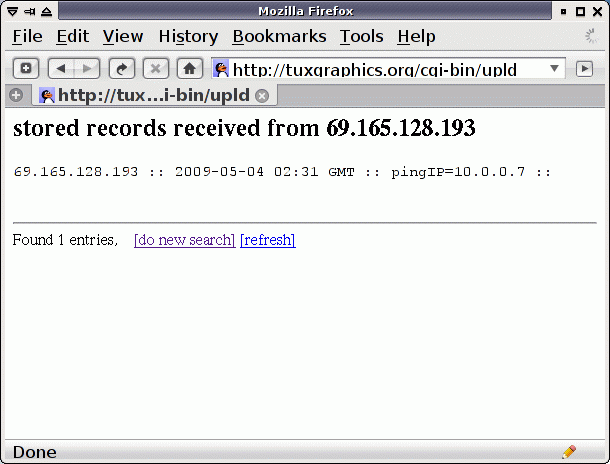

A stored record on upld

The ethernet board with the web client runs also a web server. This way we can see what is going on:

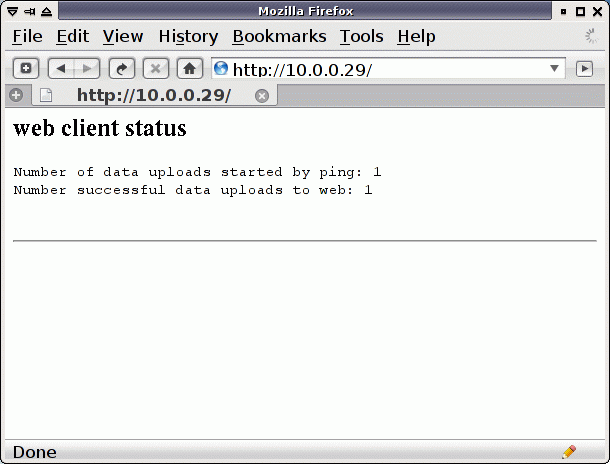

statistics about the web client


Using the web client

You find all the needed code in test_web_client.c but I explain the main points. To use the web client software you need to configure a number of IP addresses. First the board's own IP address and the MAC address. It's the same as for the web server:
 static uint8_t mymac[6] = {0x54,0x55,0x58,0x10,0x00,0x29};
 static uint8_t myip[4] = {10,0,0,29};

You will also need to define 3 more things:
 // IP address of the web server to contact:
 static uint8_t websrvip[4] = {77,37,2,152};
 // The name of the virtual host which you want to contact at
 // websrvip (hostname of the first portion of the URL):
 #define WEBSERVER_VHOST "tuxgraphics.org"
 // The default gateway. The internal ip address of your DSL router:
 static uint8_t gwip[4] = {10,0,0,2};

After that you initialize the web client:
      client_set_gwip(gwip);
      client_set_wwwip(websrvip);

You also define a function which will be called up-on successful contact with the web server. If you are not interessted in the result then you can use an empty function or ... you can just turn off an LED. Like this:
void browserresult_callback(uint8_t statuscode,uint16_t datapos){
      LEDOFF;
}

Now your are ready to use the browser to upload FORM-data. You need a trigger to do that. In the example it is a ping. It can also be a timer (e.g once a day) or it can be a sensor reaching a threshold. Whatever it is, you just call the a function called client_browse_url with some parameters and this web browser will upload the data. If you monitor a sensor threshold then make sure you implement a state and a hysteresis to prevent permanent sending of data while the value fluctuates around the threshold.

The idea of using email

mm email Now we have seen that we can report data to a web page. It would also be nice if one could receive notifications about important things via email. It would be possible to implement an email server in a microcontroller but there are too many people abusing the internet. These days mail servers block mail or mark it as spam if it comes from boxes that are not meant to be mail servers. We need therefore a better solution.



Prevent SPAM !

If you happen to have a mail server and you look at the mail headers of the latest spam messages then you will find that they all origin from virus infected windows PCs running in somebody's DSL network. The Microsoft operating system is contributing to the distribution of a huge amount of spam every day. Here are e.g 10 SPAM mails that I got today:
dsl85-107-56265.ttnet.net.tr
101.74.116.73.hathway.com
dsl.static.85-105-27576.ttnet.net.tr
79.subnet125-161-188.speedy.telkom.net.id
dsl88.245-3254.ttnet.net.tr
adsl-pool2-209.metrotel.net.co
107.221.broadband3.iol.cz
81.184.199.70.dyn.user.ono.com
athedsl-06612.home.otenet.gr
p508c26fc.dip0.t-ipconnect.de

The owners of those PCs don't usually know what is going on inside their property. Almost all better email service providers have therefore started to block mail servers which do not have a proper DNS PTR record or origin from network addresses that are not meant to be used as mailservers. Many ISPs that care about their networks block for this reason direct SMTP (=email) services from DSL customers in the firewall. To send an email directly from your home DSL line is therefore not an option. We have to get the mail first to an official mail server and then send it out. For this we use the web client code.

Getting notifications via email

You can purchase now from the tuxgraphics shop a microcontroller mail account (http://shop.tuxgraphics.org/mm.html). This account can be configured and you can specify to which email address messages from the ethernet board should be forwarded. The example test_emailnotify.c implements e.g a solution where you have a push button or switch connected on the AVR ethernet board between PD6 and GND. You could connect this switch e.g to a door. When the switch is closed then an email notification is sent and you get "the door is open" delivered to your GMail inbox or any other email account:

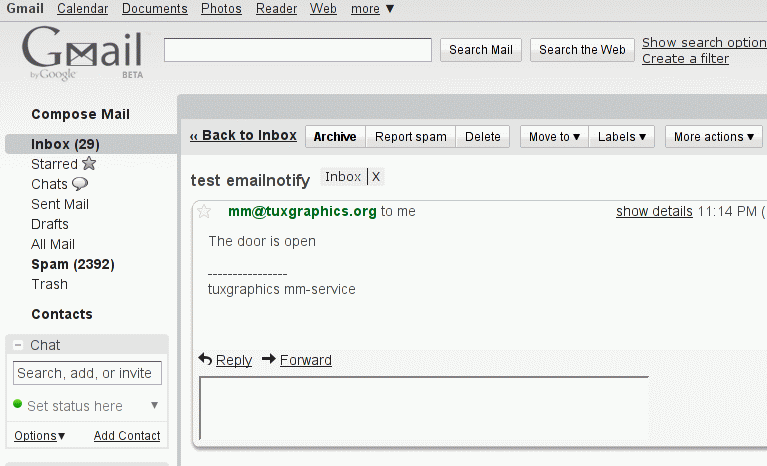

An email

test_emailnotify.c has also a timer to prevent flooding with mail. A second mail is sent no earlier than 3 minutes after the frist mail. The ethernet board runs in addition a web server so you can remotely monitor statistics and stop email notifications:

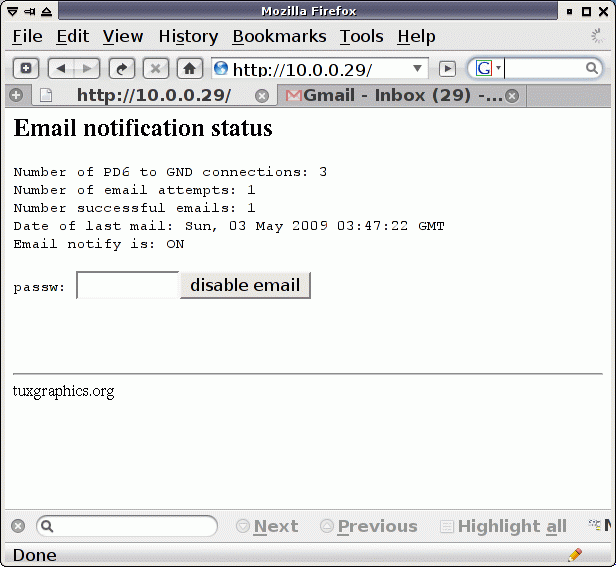

configuration page on the ethernet board

You need to enable port forwarding in your DSL router to be able to get to the web server running on the ethernet board from outside your home DSL network. Many brand name DSL routers have such functionality.

Twitter.com, Identi.ca

The twitter/identi.ca interface is implemented in version eth_tcp_client_server-3.3.tar.gz and higher. The example code that sends a message to twitter is test_twitter.c File test_identi_ca.c implements an identi.ca example. You need to edit and modify it with you account information as described in the README.htm. The file README.htm is part of the source code.

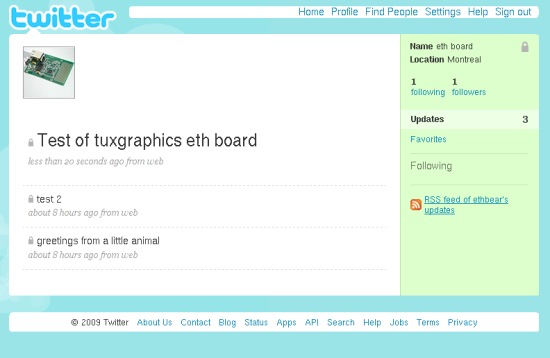

Your ethernet board send updates to twitter

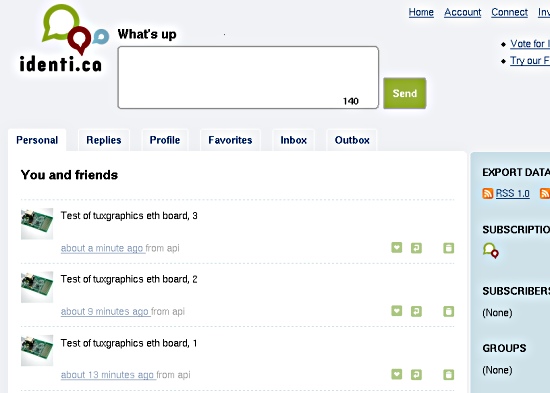

Your ethernet board send updates to identi.ca



Conclusions

It was a lot of work to re-design the IP stack but we enjoy the result.

It's really cool!

Version 4.0 is out, Feb 2010

The version 3.X code originally presented has now been updated and enhanced further. The new additions are:

Version 5.0 is out, Feb 2012

The client code has received a major overhaul. Included is now a DHCP client. This makes it possible to design boards which need no manual configuration. Very exciting stuff!

You can expect more articles with dedicated applications using the new client code.

Included in the eth_tcp_client_server-dhcp-5.0.tar.gz package is already an example that uses DHCP and uploads measurement of analog voltages periodically to a server.
