An oscilloscope clock

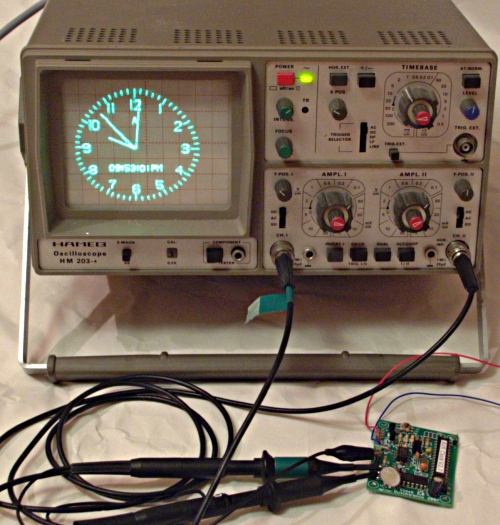

Jan de Rie from dutchtronix.com has developed an oscilloscope clock. It displays an analog clock
on any X-Y capable analog oscilloscope. A very nice idea.
_________________ _________________ _________________
The scopeclock is a atmeg168 based clock. It's a pretty "screensaver" for the
oscilloscope in your lab. Just connect it via two 10x probes and put the oscilloscope
in X-Y mode. The clock requires 5V DC power and is battery buffered.
It has Automatic Screen Repositioning to prevent screen burn-in.
More information is about this clock is available at:
The circuit/building the clock
Tuxgraphics is a re-seller of this clock and you can order it at
Below is therefore the needed assembly documentation and instructions on how to use it.
More details are available from dutchtronix.com at:

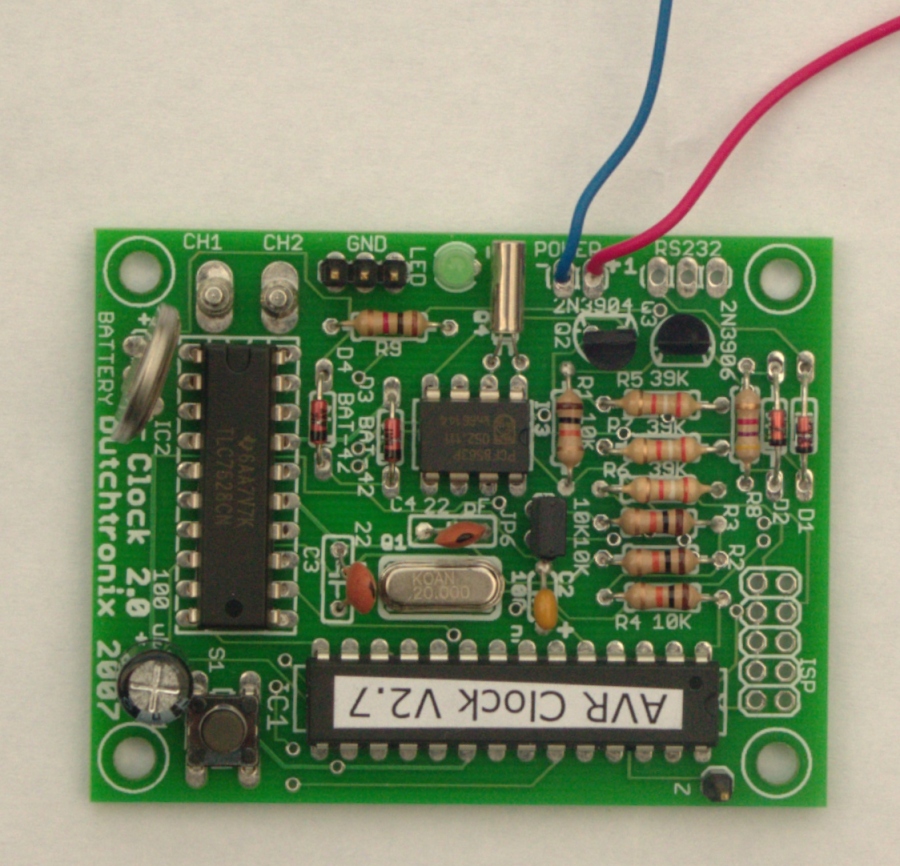

The assembled board
The kit contains sockets for all ICs. Note however that connectors and sockets
become after several years of handling and operation a reliability problem.
At tuxgraphics we recommend therefore to avoid sockets when possible.

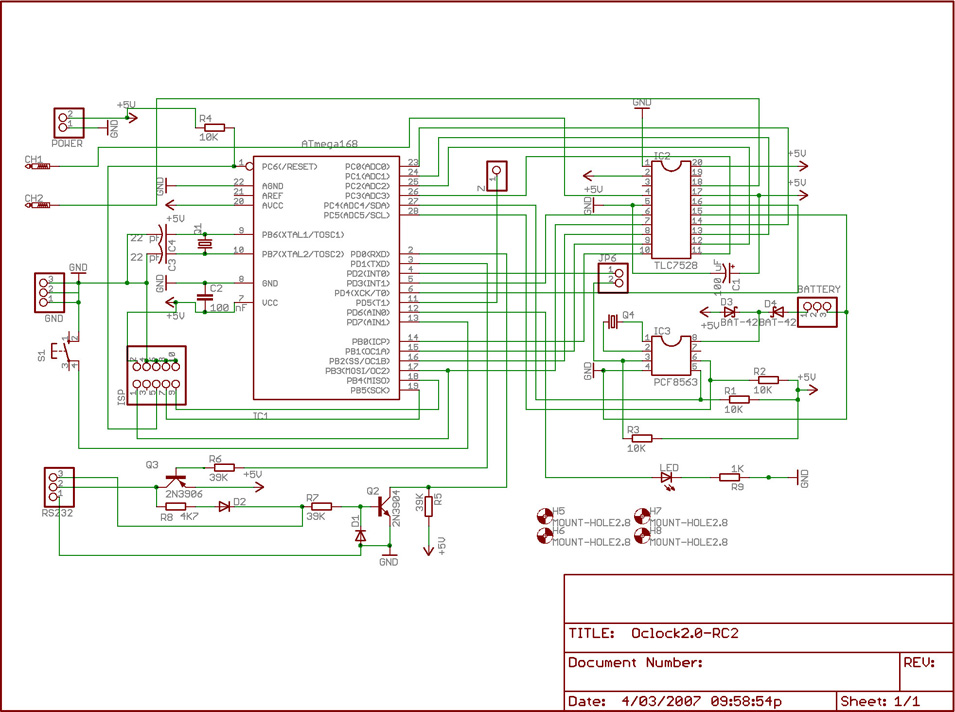

The schematics (click on the image to get a pdf version)

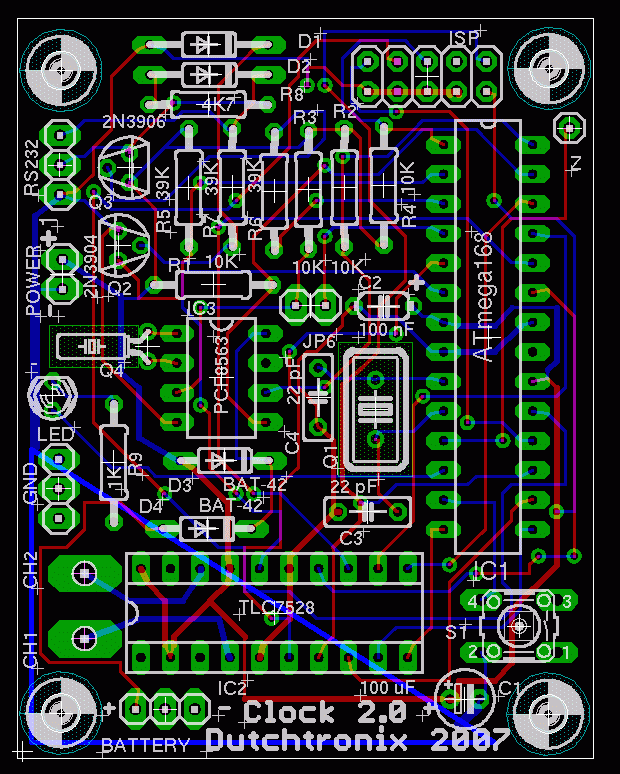

Board, top view
Using the clock
The atmega168 comes with software pre-loaded. The clock is therefore ready to
use after the assembly of the board.
Connect 5V DC to the power pins.
Set the scope in XY mode and connect the probes to channels 1
and 2. Set both channels to DC mode and the voltage range to 0.5V per division.
Most scopes define CH1 and the X axis and CH2 as the Y axis.
There are however some exceptions.
Swap the probes if the clock appears the wrong way round on the screen.
Control of the clock is primarily done using the on-board button switch. This button switch has 2 actions:
- Long push (> 1 second: keep the button switch pushed down until something happens on the screen)
Short push (<1 second: push and release the button switch
The long push enters the Time Set mode, the short push enters the Menu mode.
Time Set mode:
- short push advances the current field one
- long push moves to the next field.
Changing the time on the AVR Clock using the button switch:
A long push will enter the Time Set mode; the clock is stopped in this mode. The field being modified (hours, minutes or seconds) will flash. A short push will increment the current field. A long push will move to the next field, using the current field value as the new time value. Once done with the seconds field, a message pops up "PUSH TO START". A short push will restart the clock at the selected time. However a long push will restart the clock at the actual time, as kept by the on-board Real Time Clock. This is handy if you entered the Time Set mode by accident or you changed your mind.

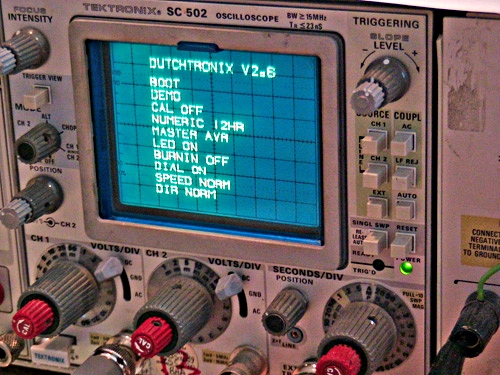

On screen configuration menu
- short push selects the next value (or activates the current option)
- long push moves to the next option.
Options available on the on-screen menu:
Option Default Value Other Values Function
BOOT reboots the clock
DEMO enter DEMO mode
CAL OFF ON Display Calibration Screen
NUMERIC 12HR 24HR/OFF Controls Numeric Display
MASTER AVR RTC Clock time keeping mode
LED ON OFF Controls LED
BURNIN ON OFF Screen burn-in prevention
DIAL FULL MIN Clock face
SPEED NORM FAST Clock speed
DIR NORM REV Clock direction
Changing an option on the AVR Clock using the button switch:
A short push will enter the Menu Mode. The option being updated/selected is flashing. Move to the next option by a long push. The first two options (BOOT and DEMO) are activation options. A short push will activate them. The other options are selection values. A short push will show the next selection value. Moving to the next option (using a long push) when the selection value has changed, will activate the selected value and the clock will leave the menu mode.
If an option cannot be changed in the current configuration (for example SPEED FAST only works in AVR Clock Master Mode), the selection value cannot be changed.
Optional RS-232 serial interface:
The clock can also also be operated through the RS-232 serial port, using a PC (or any other terminal device), though this interface may be removed in the future. To do this, you will need a cable consisting of a female DB-9 connector (for most PCs) and the 3 pin connector included with the AVR clock. Wiring is as follows
3-pin connector - 1:GND, 2:out/RXpc, 3:in/TXpc.
DB-9 connector - 5:GND, 2:RX, 3:TX.
The clock is set for a baudrate of 19,200. You can use the HyperTerminal program included with Windows, or use a freeware program like Bray's Terminal, which can be also downloaded from this page.
Once the cable is connected properly, the clock will display a sign-on message on the terminal when it powers up. The command 'X' is used to get the clock's attention (interactive mode). A prompt will show:
Enter command (A,B,C,D,F,H,L,N,P,S,T,V):
A: Toggle Clock Master Mode
B: Toggle Burn-in Prevention
C: Toggle Calibration Output
D: Set Date
F: Toggle All Clock Face Digits Display
H: Display Help
L: Toggle LED Blinking
N: Toggle Numeric Display
P: Toggle AM/PM Display
S: Show Day and time
T: Set Time
V: Toggle Verbose Output
Execution of any of these commands, or another 'X' will end the interactive mode. Note that the commands can be given in either upper or lower case.
